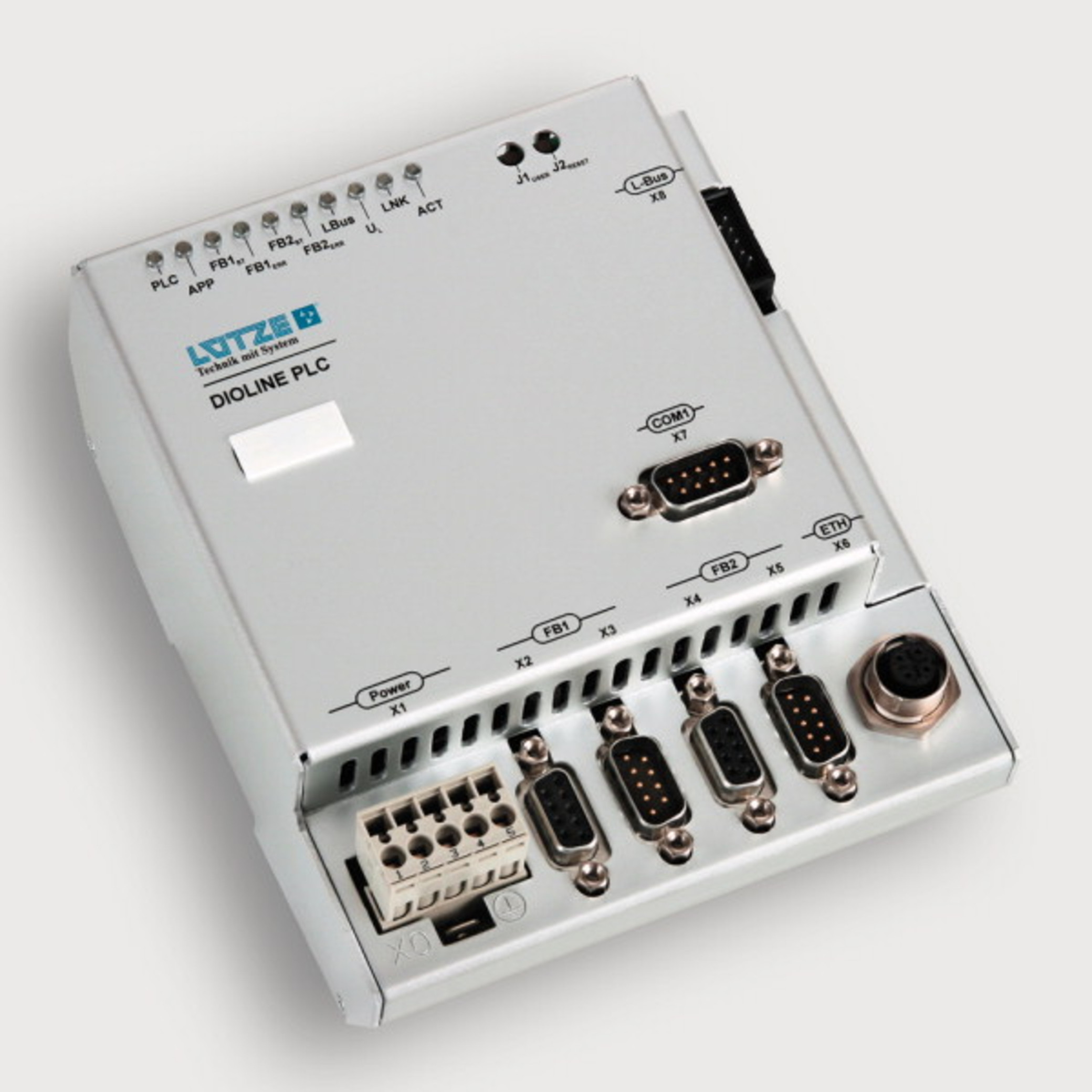

746040 - DIOLINE PLC MVB/COM

746040 - DIOLINE PLC MVB/COM

Part-No.
746040
Type
DL-PLC-MVB/ESD+-COM-LUE
Description
Flexible powerful compact control unit for use in rail vehicles. Freely programmable in a comfortable IEC 61131-3 development environment. Flexible field-bus configuration with MVB and CAN. L-Bus interface for connection of local I/O modules.
Use
MVB CAN Gateway
compact vehicle control unit
powerpack control unit
individual driver and software development possible

Technical Data

General

Controller
  • CPU ARM926 200 MHz 32 Bit
  • 4 MB flash program memory
  • 4 kB FRAM memory for retain data
  • 32 MB SD RAM
  • 2 MB flash memory for diagnostic
  • SD memory slot
  • Real-time clock (RTC)
  • Watchdog for system monitoring
  • start-up time: approx. 15 s
Software
  • Realtime operating system rcX
  • Soft-PLC KW Software ProConOS®
  • Programming languages as per IEC 61131-3: FBD, LD, ST, IL, SFC
  • Flexible fieldbus configuration
  • Visualization per OPC

Bus interface

Fieldbus
Bus system
FB1: MVB ESD+, Class 1.3
Module type
Slave
Connection type, incoming bus
X2: SUB-D socket connector, 9-pin, M3 thread
Connection type, continuing bus
X3: SUB-D plug connector, 9-pin, M3 thread
Configuration
The field bus is configured by software.
Fieldbus
Bus system
FB2: CANopen
Module type
Master
Connection type, incoming bus
X4: SUB-D socket connector, 9-pin, M3 thread
Connection type, continuing bus
X5: SUB-D plug connector, 9-pin, M3 thread
Configuration
The field bus is configured by software.
Local bus
Bus system
L-Bus Interface for local I/O modules
Module type
Master
max. number of connectable slaves: 10
Ethernet
Bus system
TCP/IP/UDP or OPC
Module type
generic
Connection
  • X6: 4-pin M12 connector D-coded
  • programming and debugging interface
Diagnostics
Bus system
Serial Interface RS232
Module type
generic
Connection
X7: SUB-D plug connector, 9-pin, M3 thread

Supply module electronic

Voltage range, incl. ripple
DC 16.8 – 30 V
Ripple
Max. 10 %
Rated current (at UN)
  • 200 mA + current consumption of connected L-Bus modules
  • 2 A fusible link, in case of internal short circuit
  • 1.25 A fusible link, in case of short-circuit of local-bus interface
Current consumption via local bus
max. 1 A
External fuse
B2 to B16
Connection
  • X1: Terminal 5-pin
  • Spring terminal: 0.14 – 2.5 mm2, AWG 22 – 12
  • Stripping length: 11 mm
  • Screwdriver: 3.5 × 0.6 mm

Diagnostics

Diagnosis indications
  • Device status (PLC) LED yellow
  • Function freely programmable (APP) LED red/green
  • MVB status (FB1ST) LED green
  • MVB status (FB1ST) LED green
  • CANopen status (FB2ST) LED green
  • CANopen error (FB2ERR) LED red
  • L-Bus status (LB) LED red/green
  • Logic supply(UL) LED green
  • Ethernet Link (LNK) LED green
  • Ethernet Activity (ACT) LED yellow
  • Push-button (J1USER) function programmable
  • Push-button (J2RESET) for warm start

Electrical isolation

Isolating voltage
  • AC 500 V Ethernet and elektronics
  • AC 500 V MVB and electronics
  • AC 500 V CAN and electronics

Technical data

Mounting
DIN rail mounting
Installation postition
  • As desired
  • Installation space:
  • top: 5 mm (for assembly)
  • bottom: 5 mm (for assembly)
  • side: 0 mm
Protection class
IP20
Dimensions (w × h × d)
123×141,5×64,1 mm
Weight
0,55 kg/piece
Operating temperature
-40 °C … +70 °C
Storage temperature range
-40°C…85°C

PE connection

Connection tab
X0: 6.3 mm × 0.8 mm
Standards
EN 45545-2: Railway applications – Fire protection on railway vehicles – Part 2: Requirements for fire behaviour of materials and components

Failure Rate Prediction (MTBF)

Standards
  • Electronic components – Reliability – Reference conditions for failure rates and stress models for conversion: EN/IEC 61709
  • Failure Rates of Components – Expected values: SN 29500
Failure rate at +45 °C
2430 fit
Failure rate at +45 °C
411512 h
1 fit equals one failure per 109 component hours
The indicated temperature is the mean component ambient temperature.
Comments
  • The results are valid under following conditions:
  • Automotive environment or industrial areas without extreme dust levels and harmful substances
  • Continuous operation 8760 h per year
Accessories
  • Not included in the delivery:
  • SUB-D refitting set M3 in UNC4/40, part number 746840
  • Included in the delivery:
  • Screwless terminal, power supply, part number 745861
  • "Lütze MVB Configurator" version 1.0
