716090 - Lighting elements

716090 - Lighting elements

Part-No.
716090
Type
BLE-6090
Description

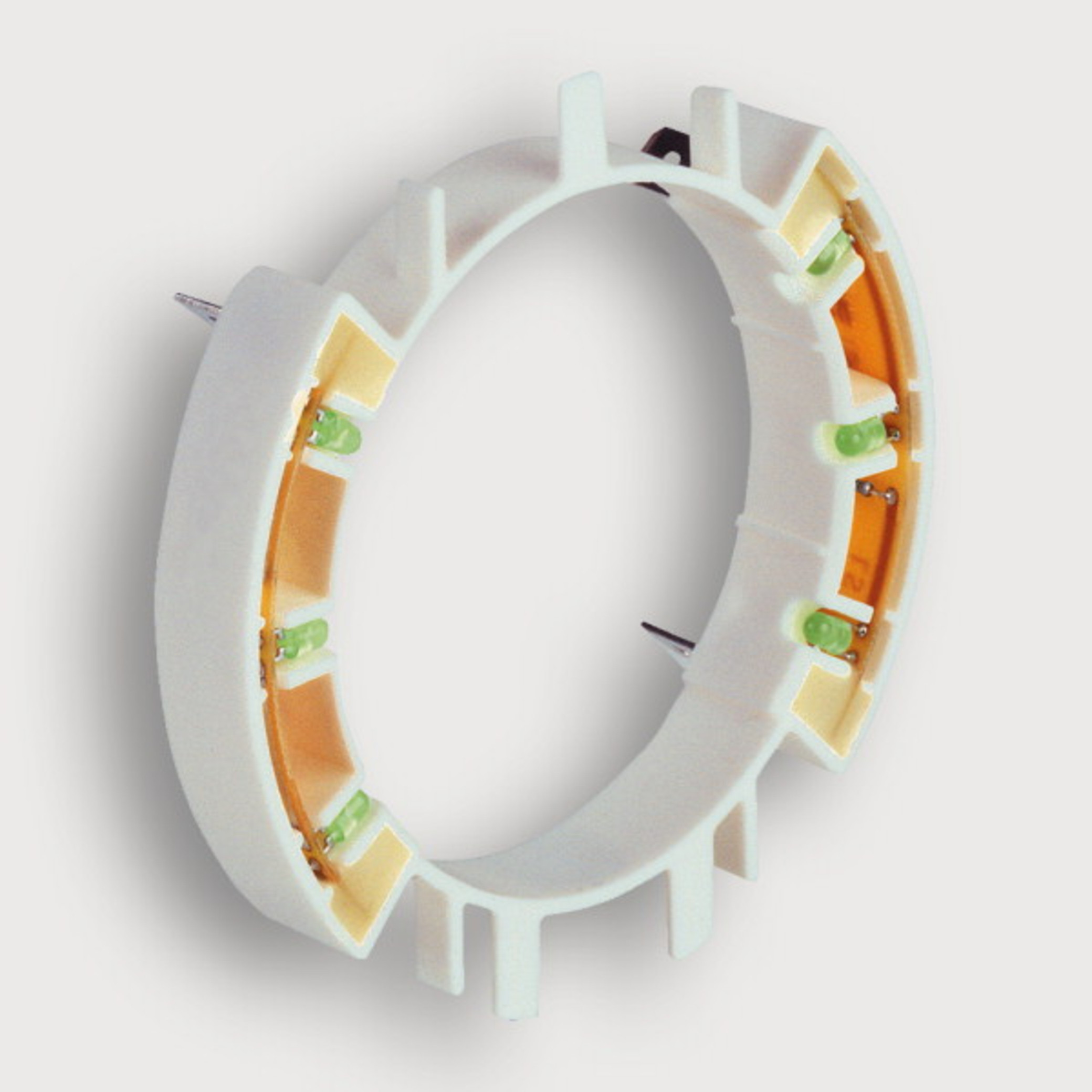

Lighting element for 60 mm dia. round instruments with side light slots.

Technical Data

Technical data

Rated voltage UN
DC 24 V
Rated current (at UN)
max. 21.5 mA
Light element(s)
LED yellow–green, Ø 3 mm
Wavelength
565 nm

General

Connection type
  • connection tab 6.3 × 0.8 mm
  • DIN 46244
Operation temperature range
-25 °C … +70 °C
Storage temperature range
-25°C…80°C
Diameter D
59,2 mm
Weight
0,021 kg/piece
Standards
  • EN 50155: Railway applications – Rolling stock – Electronic equipment
  • EN 50121-3-2: Railway applications – Electromagnetic compatibility – Part 3-2: Rolling stock – Apparatus
  • EN 50124-1: Railway applications – Insulation coordination – Part 1: Basic requirements – Clearances and creepage distances for all electrical and electronic equipment
  • EN 61373: Railway applications – Rolling stock equipment – Shock and vibration tests
The standard applicable to this product is dependent on the version available for development. The standards applicable to this product are available on request.
Comments
The LEDs are arranged in two segments. These can be operated in parallel or in series. In the case of parallel connection the operating voltage is 12 V and the current consumption max. 43 mA.
