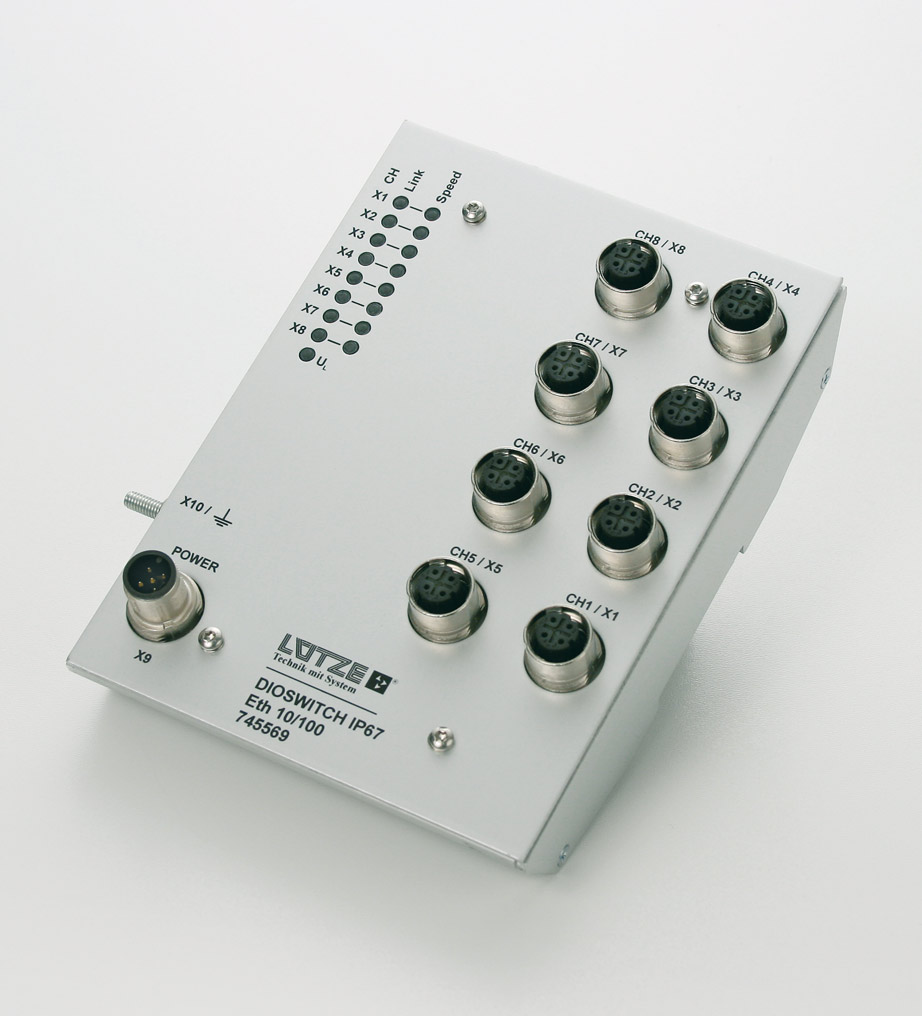

The DIOSWITCH IP67 is a robust, high-quality, industrial-use Ethernet switch for top-hat rail mounting.
The operating temperature is -40 °C to +70 °C, and the supply voltage totals DC 24 V. The connection of the 8 ports takes place via the d-encoded M12 connectors. Included among the many features supported are auto-negotiation, auto-crossing and auto-polarity.
The latency periods can be minimized thanks to the store-and-forward transmission mode. The product is also suitable for use in Profinet networks (Conformance Class CC-A).
