Network technology

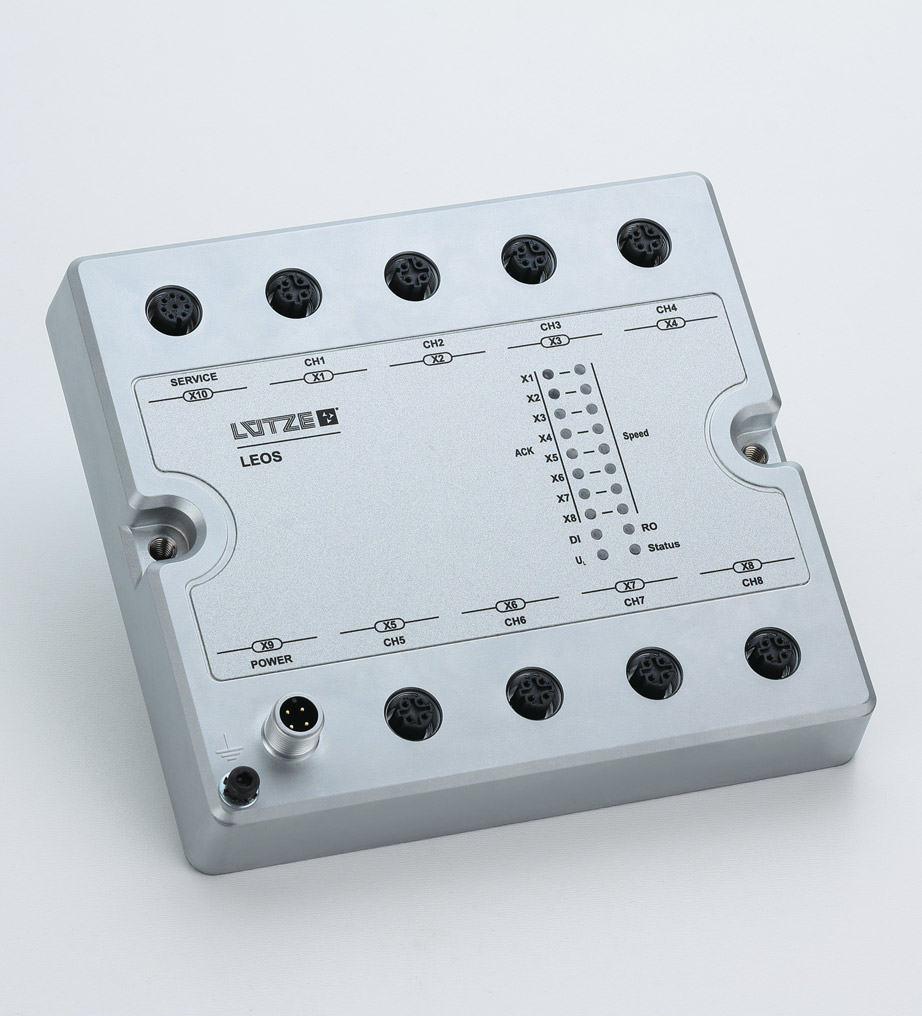

The new Ethernet switch product family from LÜTZE-LEOS stands for Lütze Ethernet Onboard System. The devices were specially developed for use in rail vehicles and comply with EN50155. All products have a wide-range power supply ranging from DC 24 V to 110 V and protection class IP54. The user can select a scalable feature set. In this way, a LEOS-Unmanaged, a LEOS-Lite Managed, and a LEOS-Full Managed Ethernet switch are available Depending on the configuration level, the user is provided with various functions, such as QoS, VLAN, Link Aggregation, Port Mirroring and lots more. It also includes a digital input that can trigger the sending of special telegrams, and a relay contact that is activated depending on the operating status.

The devices can also be configured via a web server. It is possible to export and import configurations via a USB stick allowing simple cloning of devices. The LEOS router rounds off the product program that, in addition to the NAT function and a DHCP server (incl. the option 82), can also be used for ring topologies.

To LÜTZE Online Catalogue
  • Share :
Network technology - Lütze Transportation GmbH

LEOS Unmanaged Ethernet Switch

8-port switch with 10/100 Mbit/s, wide range 24 - 110 VDC power supply. This inexpensive version for simple applications has a space-saving design and is extremely durable thanks to its completely closed die-cast casing.

LEOS Lite Managed Ethernet Switch

The durable 8-port switch with 10/100 Mbit/s and USB interface for software update and data logging can be configured via a web interface. In addition to the wide range 24 - 110 VDC power supply, it also has a configurable diagnostic function over a potential-free relay contact.

LEOS Full Managed Ethernet Switch

As the LEOS Lite Managed Ethernet Switch, but also with NTP server/client/broadcasting, SNMB MIB, System/If Table/etherStats, DHCP, DHCP Option 82.

LEOS Ethernet Router

As the LEOS Lite Managed Ethernet Switch, but also with NTP server/client/broadcasting, SNMB MIB, System/If Table/etherStats, DHCP, DHCP Option 82 and interface based filtering, IP based filtering, TCP/UDP based filtering and port based filtering.

Further products

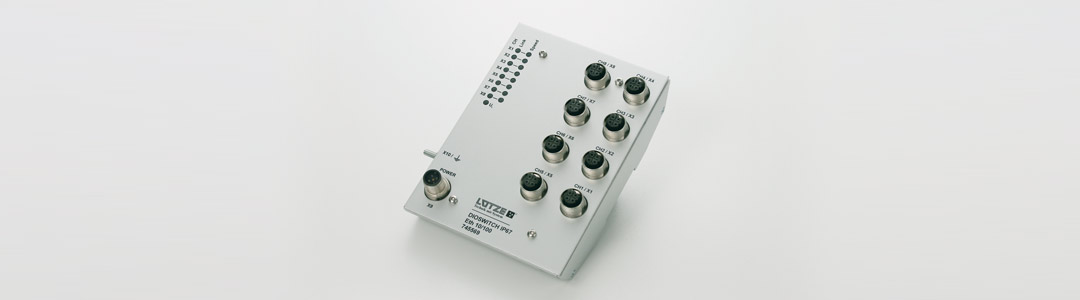

DIOSWITCH IP67

To the product
